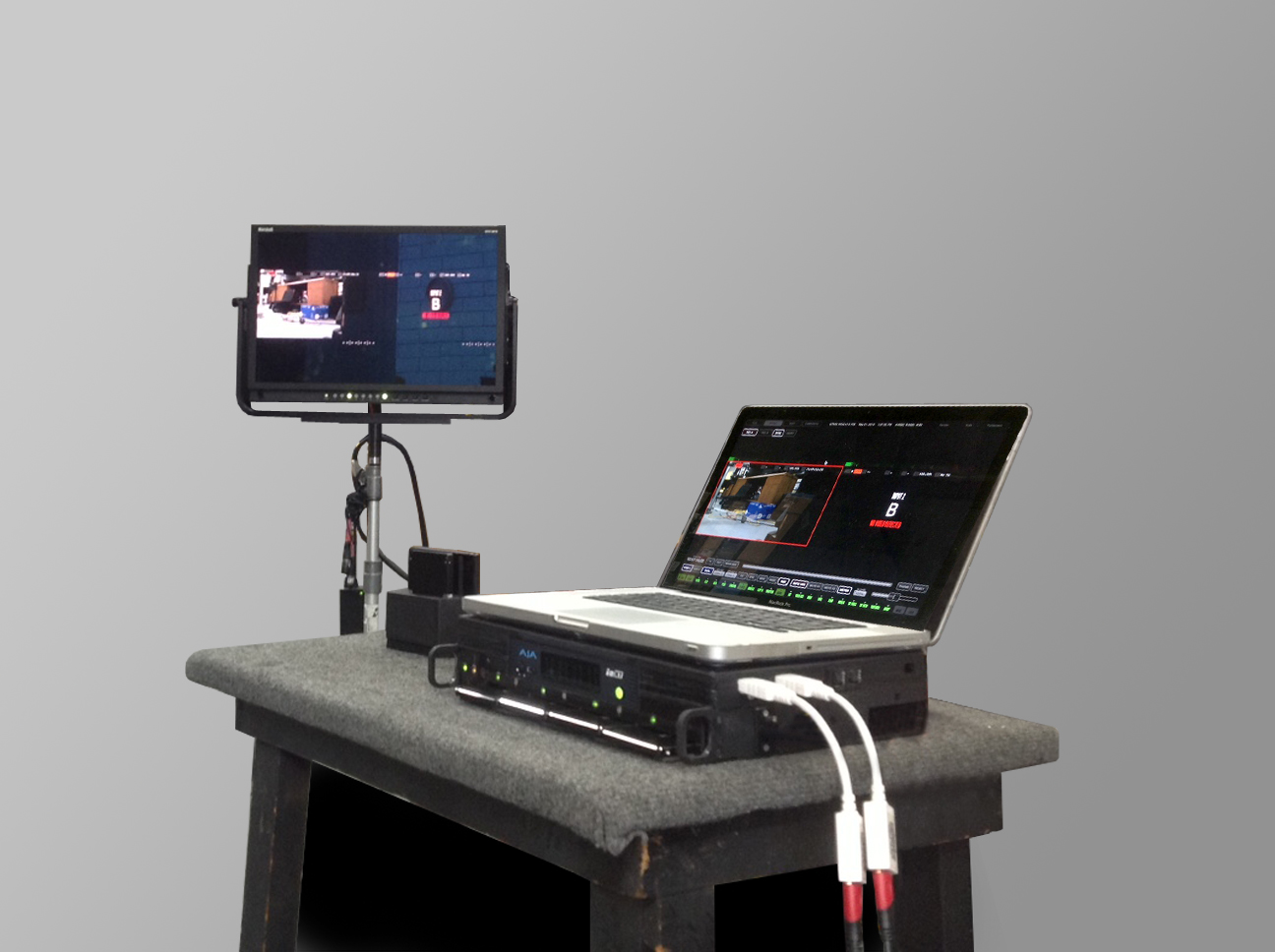

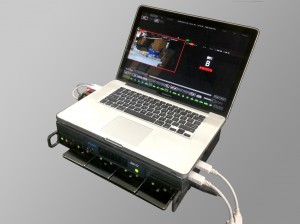

FDR2 Solid State Qtake System
Field Data Recorder (FDR-2)
Available for Rental & Delivery June 2013
15″Mac Book Pro w/256 S.S.D (we can use yours too!)
Matrox Dual Port Adaptor w/Display Port to HDMI Adapters (2)
DC Power Cable for MAC Book (1)
Clear Polycarbonate enclosure
Superior CPU & GPU cooling
AJA IO XT Chassis (Thunderbolt)
Additional Thunderbolt devices supported with TB pass through
AJA IO XT (We can use yours too!)
2X HD SDI I/O (4 total)
HDMI Input
2X T.C. I/O
Raid Chassis (SATA Hardware RAID)
4 X Samsung 840 500Gb SSD
4X Drive Bay Hot Swap Raid supports RAID 0, 1, 5 with cooling
Up to 300Mb/sec I/O & Uses No MAC CPU Cycles
2X Hot Swap Battery Slots for 4+ Hr battery operation (Batts Optional)
4Pin XLR Power Input w/10A circuit breaker (1)
Average Power Draw 1.6A @ 14.4VDC 10.2 – 28VDC input
Regulated Computer Switching Power Converter
AJA Style 5VDC 4A Power Connector (1)
BMD Style 12VDC 4A regulated power connector (1)
Carrying Handle and Shoulder Strap
Also available without the I/O Bay (FDR-1)
QTake, FCP, Avid, Adobe Support
Rent or Buy
Discount to Operators
